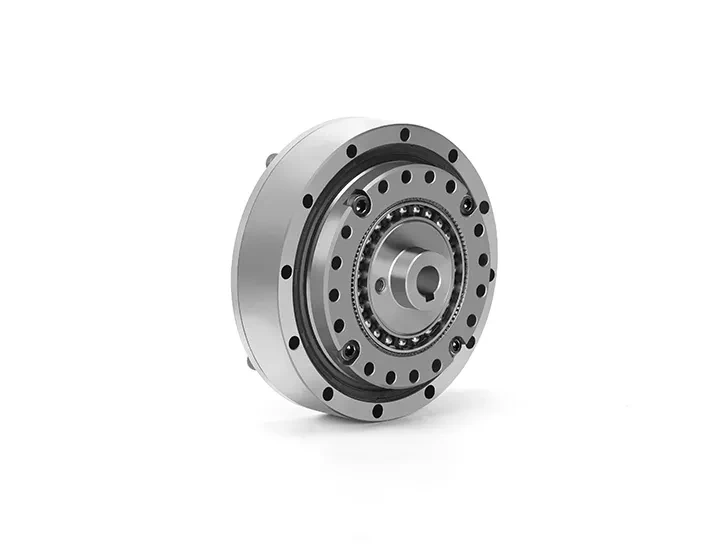

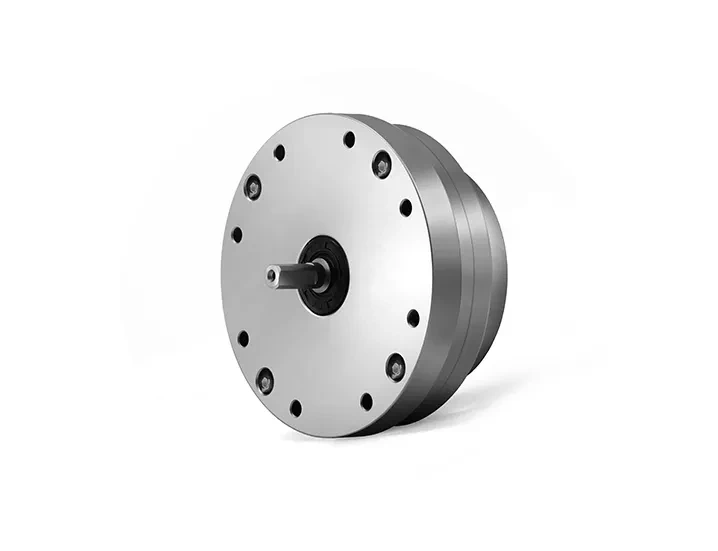

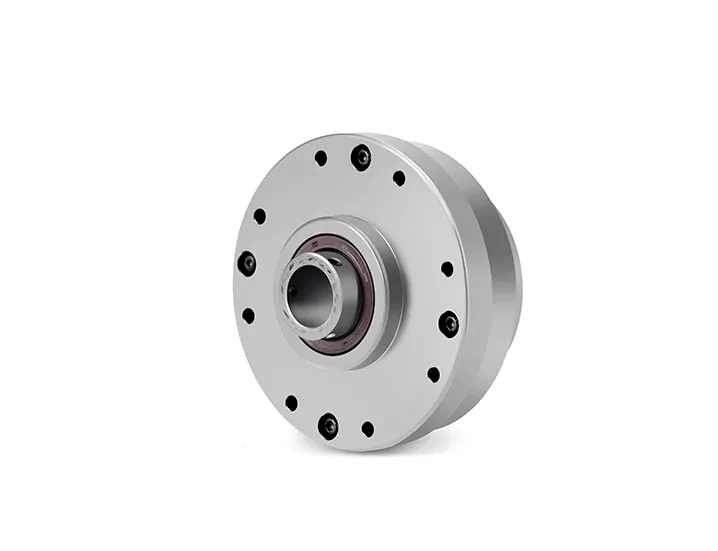

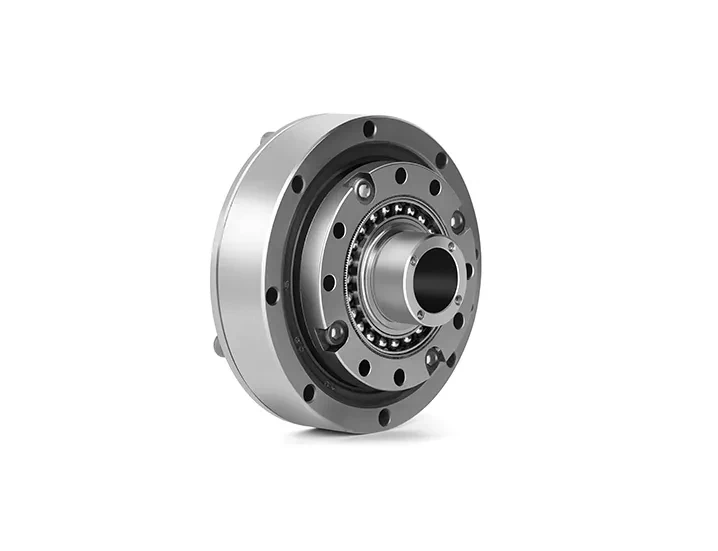

SHG High Torque Harmonic Gearbox
PRODUCT FEATURES
The product features a slim, streamlined profile with a spacious, hollow shaft for versatile use. Its design is compact, clean, and to the point. It ensures a backlash-free operation for smooth motion. The input and output are aligned coaxially for efficient power transfer. It also provides exceptional precision in positioning and consistent repeatability.
PRODUCT ADVANTAGES
SHG-I/II:
- Enhanced Compactness:Â Delivers a more condensed design for efficient space utilization.
- Dual Connection Modes:Â Offers the adaptability of two different connection methods.
- Direct Motor Linkage:Â Facilitates a straightforward setup by enabling a direct link between the motor and gearbox.
SHG-III High Reliability Harmonic Drive Gearbox:
- Spacious Hollow Shaft:Â Incorporates a sizable hollow shaft in the wave generator for a wide range of uses.
- Sealed Construction:Â Guarantees durability and shields against external elements.
- User-Friendly Installation:Â Designed for a hassle-free setup experience.
SHG-IV:
- Diverse Input Compatibility:Â Adapts to multiple input types, ensuring broad applicability.
- Robust Sealing:Â Ensures dependable operation even in harsh conditions.
- Effortless Assembly:Â Simplifies the installation process for user convenience.
SHG-V High-Speed Ratio Harmonic Gearbox:
- Customizable Design:Â Permits user-driven modifications for reduced weight and slimmer profile without performance loss.
- Performance Consistency:Â Retains the same level of performance post-redesign for dependable functionality.
PRODUCT DESCRIPTION
The SHG series embodies the company’s dedication to achieving high load-bearing capabilities and dependability. It boasts a torque capacity that is 30% greater than that of standard products, which guarantees exceptional performance even in the most challenging applications. Additionally, the SHG series has a 43% longer service life, contributing to its enhanced durability and longevity, and reducing both downtime and maintenance expenses.
SPECIFICATIONS
Specification of SHG High Torque Harmonic Gearbox Rated parameters
| Model | Reduction ratio | Rated torque at 2000r/min input | Permissible peak torque at start and stop | Permissible maximum value for average load torque | Permissible maximum momentary torque | Permissible maximum input rotational speed | Permissible average input rotational speed | Backlash | Weight | Design life | ||||
| Grease | Grease | |||||||||||||
| Nm | kgfm | Nm | kgfm | Nm | kgfm | Nm | kgfm | r/min | r/min | Arc Sec | kg | Hour | ||
| 14 | 50 | 7 | 0.7 | 23 | 2.3 | 9 | 0.9 | 46 | 4.7 | 8500 | 3500 | ≤20 | LHG-I/II:0.40 | 10000 |
| 80 | 10 | 1 | 30 | 3.1 | 14 | 1.4 | 61 | 6.2 | LHG-III:0.7 | 15000 | ||||
| 100 | 10 | 1 | 36 | 3.7 | 14 | 1.4 | 70 | 7.2 | LHG-IV:0.66 | 15000 | ||||
| 120 | 10 | 1 | 36 | 3.7 | 14 | 1.4 | 70 | 7.2 | LHG-V:0.40 | 15000 | ||||
| 17 | 50 | 21 | 2.1 | 44 | 4.5 | 34 | 3.4 | 91 | 9 | 7300 | 3500 | ≤20 | LHG-I/II:0.54 | 10000 |
| 80 | 29 | 2.9 | 56 | 5.7 | 35 | 3.6 | 113 | 12 | LHG-III:0.99 | 15000 | ||||
| 100 | 31 | 3.2 | 70 | 7.2 | 51 | 5.2 | 143 | 15 | LHG-IV:0.90 | 15000 | ||||
| 120 | 31 | 3.2 | 70 | 7.2 | 51 | 5.2 | 112 | 11 | LHG-V:0.62 | 15000 | ||||
| 20 | 50 | 33 | 3.3 | 73 | 7.4 | 44 | 4.5 | 127 | 13 | 6500 | 3500 | ≤20 | LHG-I/II:0.72 | 10000 |
| 80 | 44 | 4.5 | 96 | 9.8 | 61 | 6.2 | 165 | 17 | LHG-III:1.32 | 15000 | ||||
| 100 | 52 | 5.3 | 107 | 10.9 | 64 | 6.5 | 191 | 20 | LHG-IV:1.29 | 15000 | ||||
| 120 | 52 | 5.3 | 113 | 11.5 | 64 | 6.5 | 191 | 20 | LHG-V:0.82 | 15000 | ||||
| 160 | 52 | 5.3 | 120 | 12.2 | 64 | 6.5 | 191 | 20 | 15000 | |||||
| 25 | 50 | 51 | 5.2 | 127 | 13 | 72 | 7.3 | 242 | 25 | 5600 | 3500 | ≤20 | LHG-I/II:1.22 | 10000 |
| 80 | 82 | 8.4 | 178 | 18 | 113 | 12 | 332 | 34 | LHG-III:2.02 | 15000 | ||||
| 100 | 87 | 8.9 | 204 | 21 | 140 | 14 | 369 | 38 | LHG-IV:1.99 | 15000 | ||||
| 120 | 87 | 8.9 | 217 | 22 | 140 | 14 | 395 | 40 | LHG-V:1.40 | 15000 | ||||
| 32 | 50 | 99 | 10 | 281 | 29 | 140 | 14 | 497 | 51 | 4800 | 3500 | ≤20 | LHG-I/II:2.54 | 10000 |
| 80 | 153 | 16 | 395 | 40 | 217 | 22 | 738 | 75 | LHG-III:4.20 | 15000 | ||||
| 100 | 178 | 18 | 433 | 44 | 281 | 29 | 841 | 86 | LHG-IV:4.00 | 15000 | ||||
| 120 | 178 | 18 | 459 | 47 | 281 | 29 | 892 | 91 | LHG-V:2.70 | 15000 | ||||
| 40 | 50 | 178 | 18 | 523 | 53 | 255 | 26 | 892 | 91 | 4000 | 3000 | ≤20 | LHG-I/II:4.40 | 10000 |
| 80 | 268 | 27 | 675 | 69 | 369 | 38 | 1270 | 130 | LHG-III:7.20 | 15000 | ||||
| 100 | 345 | 35 | 738 | 75 | 484 | 49 | 1400 | 143 | LHG-IV:7.00 | 15000 | ||||
| 120 | 382 | 39 | 802 | 82 | 586 | 60 | 1530 | 156 | LHG-V:4.06 | 15000 | ||||
