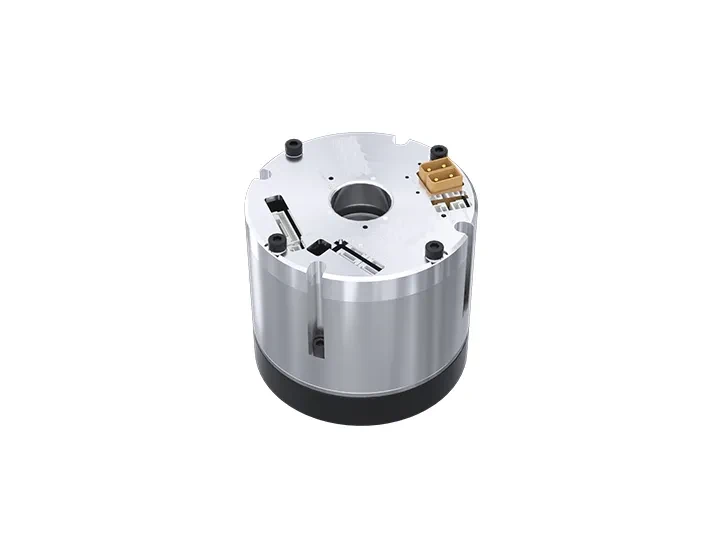

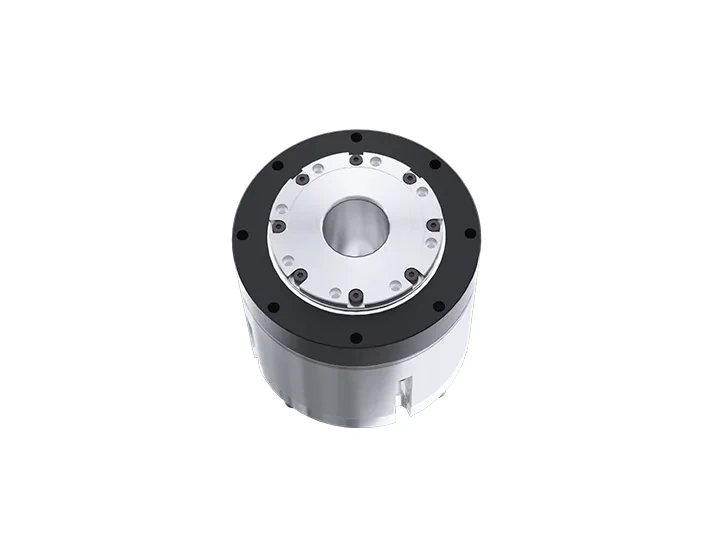

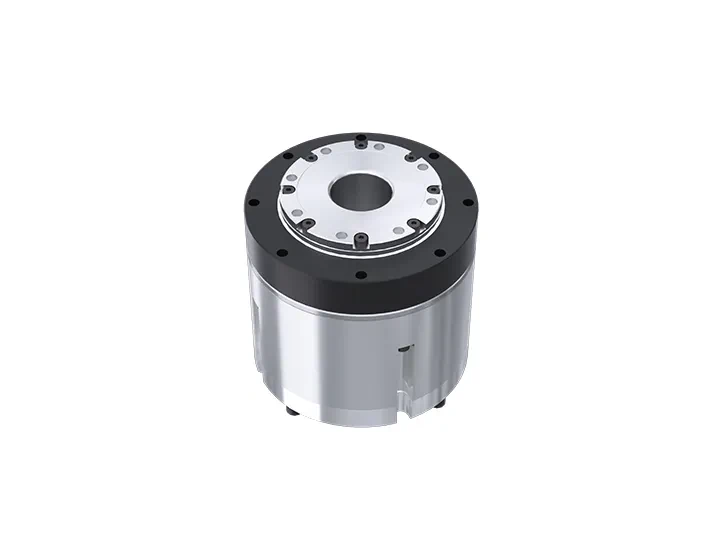

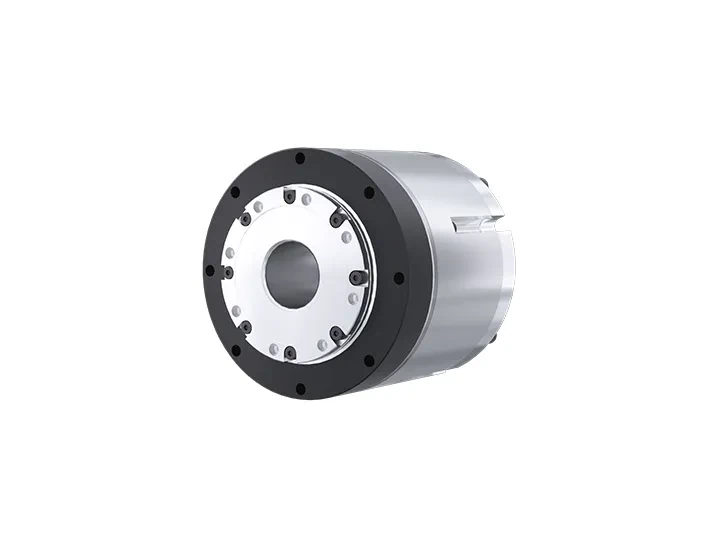

High Voltage Rotary Actuators SIS Series

CORNER TYPE Collaborative Robot Joint Module
The SIS series rotary actuators feature an electromagnetic brake system, incorporate a spacious hollow shaft design, and operate with low vibration, ensuring smooth and reliable performance.
Inquiry
Whatsapp

PRODUCT ADVANTAGES

  1. Compact in design yet powerful in torque output.
  2. Exceptional precision with absolute positioning accuracy maintained at less than 20 arc seconds.
  3. Resilient to environmental conditions, featuring IP65 and IP54 protection standards.
  4. Designed for zero maintenance, eliminating the need for lubricant replacement throughout its lifespan.
  5. Enduring durability, with consistent accuracy maintained even after extensive use exceeding 15,000 hours.

PRODUCT DESCRIPTION

The SIS Series encompasses both high-voltage and standard models, characterized by an exceptionally large hollow shaft, equipped with dual encoders, and featuring a braking system.

This system features an integrated dual absolute encoder with dual-loop control, providing a 16-bit absolute encoder for the output shaft. It guarantees repeatability at ±7 arc seconds and absolute accuracy up to ±15 arc seconds, while retaining the real absolute position and multi-turn count even during power-off.
sis product_detial_description 3
The brake operates smoothly and stably, eliminating any gaps or backlash. It doesn't require repositioning upon power-up and is wear-free, suitable for use as an emergency stop mechanism.

SPECIFICATIONS

Specification of High Voltage Rotary Actuators SIS Series

Model 14 17 20 25 32 40
Harmonic Drive-reduction ratio 51 81 101 51 81 101 121 51 81 101 121 51 81 101 121 51 81 101 121 51 81 101 121
Permissible Peak Torque at Start and Stop N·m 23 30 36 44 56 70 70 73 96 107 113 127 178 204 217 281 395 433 459 523 675 738 802
Permissible Maximum Value for Average Load Torque N·m 9 14 14 34 35 51 51 44 61 64 64 72 113 140 140 140 217 281 281 255 369 484 586
Permissible Maximum Momentary Torque N·m 46 61 70 91 113 143 112 127 165 191 191 242 332 369 395 497 738 841 892 892 1270 1400 1530
Maximum Rotate Speed rpm 117.6 74.1 59.4 117.6 74.1 59.4 49.6 117.6 74.1 59.4 49.6 109.8 69.1 55.4 46.3 94.1 59.3 47.5 39.7 78.4 49.4 39.6 33.1
Rated Rotate Speed rpm 58.8 37.0 29.7 58.8 37.0 29.7 24.8 58.8 37.0 29.7 24.8 58.8 37.0 29.7 24.8 58.8 37.0 29.7 24.8 39.2 24.7 19.8 16.5
Maximum Current Arms 2.06 1.69 1.63 3.08 2.47 2.48 2.07 5.17 4.28 3.82 3.37 8.71 7.68 7.06 6.27 10.94 9.68 8.51 7.53 21.92 17.82 15.62 14.17
Rated Current Arms 0.81 0.79 0.63 2.38 1.54 1.80 1.51 3.11 2.72 2.29 1.91 4.94 4.88 4.85 4.05 5.45 5.32 5.52 4.61 10.69 9.74 10.24 10.35
Torque Constant Nm/Arms 11.16 17.72 22.09 14.28 22.68 28.28 33.88 14.13 22.44 27.99 33.53 14.58 23.16 28.88 34.60 25.69 40.80 50.87 60.95 23.86 37.89 47.24 56.60
Motor Phase resistance Ohms 2.15 2.15 2.15 2.15 1.14 1.14 1.14 1.14 0.57 0.57 0.57 0.57 0.46 0.46 0.46 0.46 0.153 0.153 0.153 0.153
Motor Phase Inductance mH 6.45 6.45 6.45 6.45 5.1 5.1 5.1 5.1 2.85 2.85 2.85 2.85 2.5 2.5 2.5 2.5 0.84 0.84 0.84 0.84
Back-EMF Vrms/krpm 29.5 29.5 29.5 29.5 27.2 27.2 27.2 27.2 32.2 32.2 32.2 32.2 42.1 42.1 42.1 42.1 47 47 47 47
Pole number 8 8 8 5 5 5 5 7 7 7 7 5 5 5 5 8 8 8 8 10 10 10 10
Supply Voltage V AC 220V
Motor Insulation Thermal Class ： F(155 ℃ )
Insulaing Resistance ： Above 500MΩ （ DC500V ）
Withstanding Voltage and Insulation ： AC1500V(1minute)
Size mm 90*133 110*150 142*148 170*165
Absolutely Encoder Encoder Type Dual Absolute
Encoder Resolution Single 17bit/Muilt 16bit
One way Positioning Accuracy Arc sec 60
Repeated Positioning Accuracy Arc sec 20
Overturning Stiffness ×10^4 Nm/rad
Torsional Stiffness ×10^4 Nm/rad
Moment of Inertia kg*mm^2 114 550 799 2750
Weight kg 2.8 4.1 6.9 11.4
